Stinger IE268 radio: How to Remove the Metal Mounting Sleeve

Before installing the Stinger IE268 radio, remove the metal mounting sleeve.

Applicable part numbers: STGCD641DDB, STGCD651DDB, STG-CHA68, STG-FMK542RPDDB, STG-GM4101, STG-TOYK973, STH68FD, STH68GM11, STH68GM31, STH68JK, STH68TAC, STH68TUN

1. Using a panel tool, hook tool, or flat-blade screwdriver, pull out on the locking tab on each side of the sleeve to release it from the radio. As you release it, slide the sleeve towards the back of the radio (Figure 1).
2. Keep pressure on the sleeve towards the back of the radio to keep it released, then work on the other side. As an alternative solution, you can keep a tool in the released tab while you work on the other side.
3. Slide the sleeve towards the back of the radio to fully remove it. It may fight you a bit due to the plastic on the radio (Figure 2).
4. After removing the sleeve, remove the clear plastic from the radio.
5. Discard the sleeve; it’s not needed for this application.

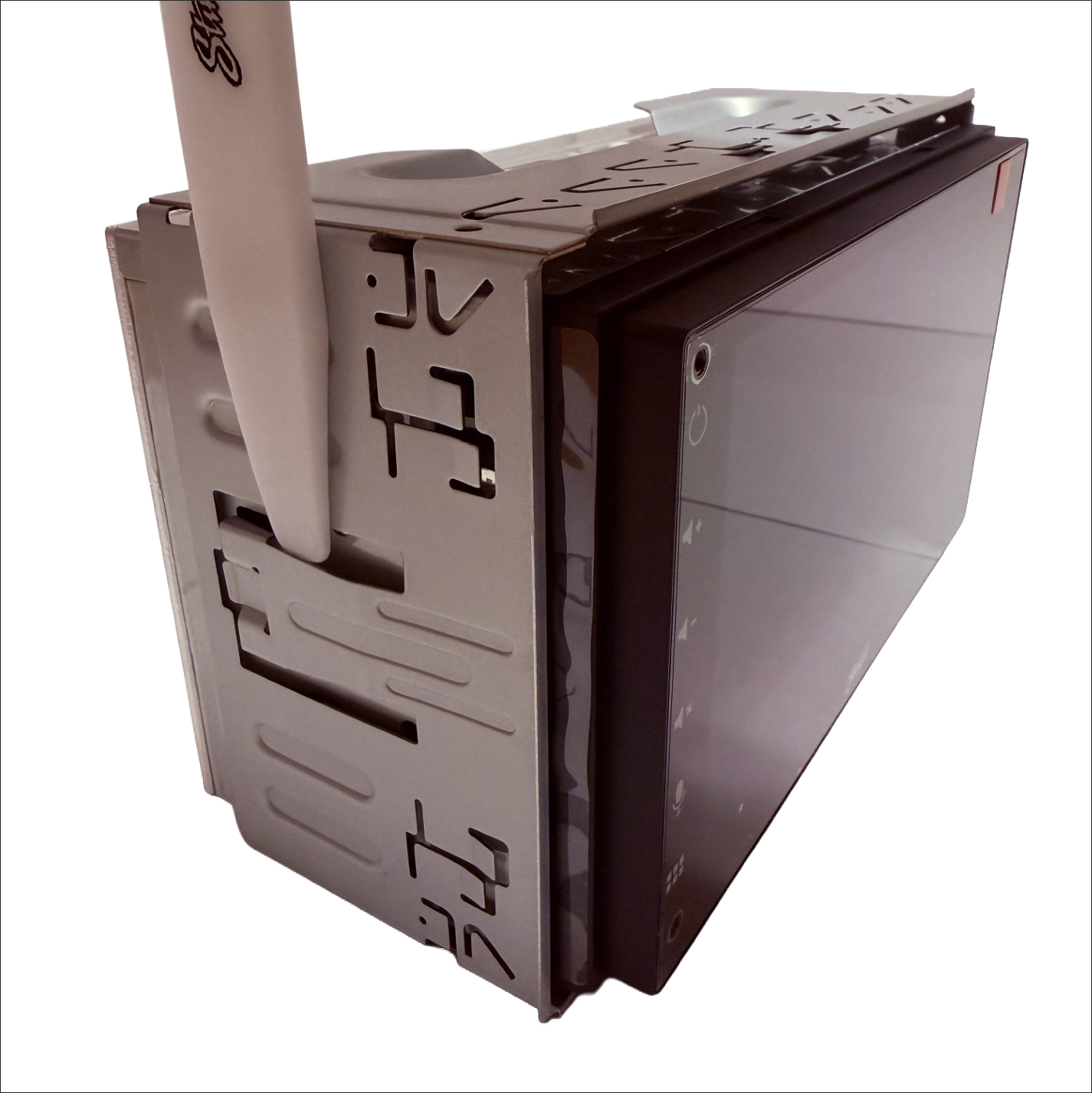

Figure 1

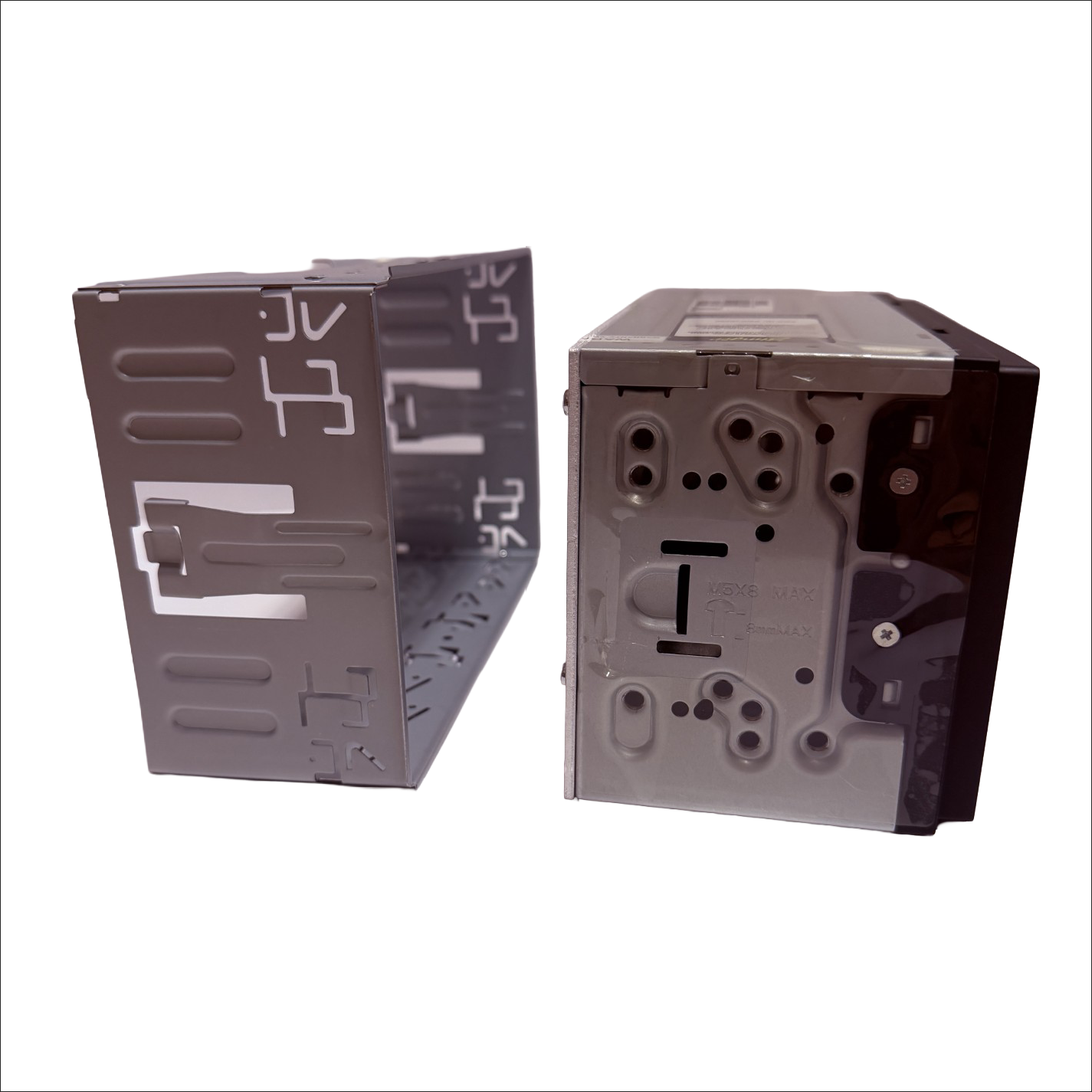

Figure 2
