For the STH68JK radio kit, a speaker connector must be chosen for either Amplified or Non-Amplified. The kit comes with the connector unplugged, so there is no audio if no connection has been made.
Instructions

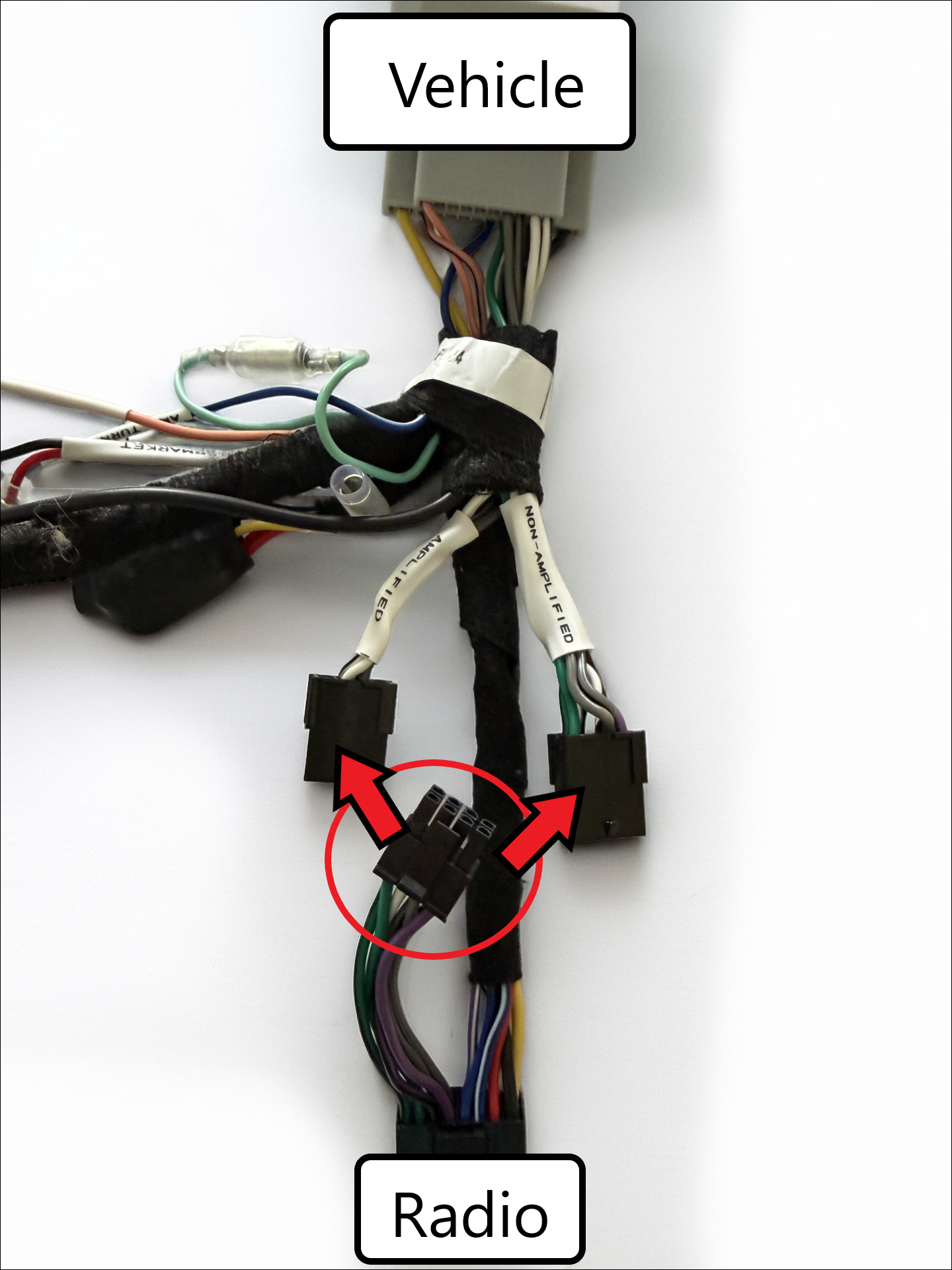

- The circled male harness must be plugged into one of the two female connectors indicated by the arrows.
Note: The image shown is for reference only. Your harness may be different.
