STR4KE Settings Menu

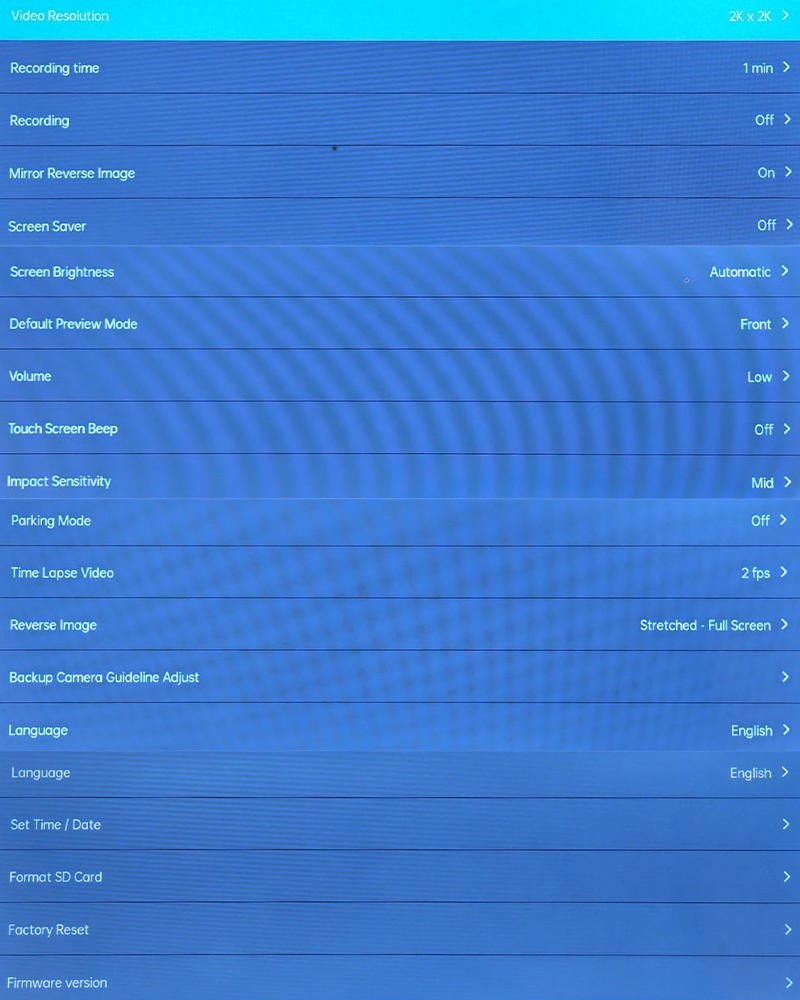

The following are the settings for the STR4KE mirror monitor.

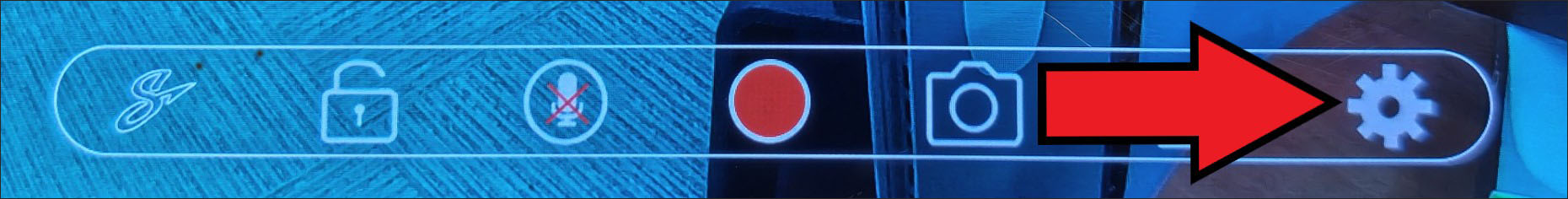

To access the setting menu press the cog wheel.

Video Resolution

Resolution for the front / rear cameras

• 1080P x 1080P
• 2K x 1080P
• 2K x 2K
• 4K x 1080P

Recording Time

Continuous recording segment length

• 1 min
• 2 min
• 5 min

Recording

• Off
• On

Mirror Reverse Image

• Off
• On

Screensaver

• Off
• 1 min
• 2 min
• 3 min

Screen Brightness

• Automatic
• Manual

Default Preview Mode

Changes the default camera displayed

• Front
• Rear
• Split Screen

Volume

Volume level for the voice assistant

• Off
• Low
• Mid
• High

Touchscreen Beep

• Off
• On

Impact Sensitivity

Higher settings trigger frequent alerts and use more SD card space

• Off
• Low
• Mid
• High

Parking Mode

Enables parking mode, and the time it will stay on for

Note: This may cause battery consumption and SD card space

• Off
• 2 Hr
• 6 Hr
• 12 Hr
• 24 Hr

Time Lapse Video

Higher fps offers smoother video, but uses more SD card space

• 1 fps
• 2 fps
• 5 fps

Reverse Image

Centered image is appropriately sized but has left and right borders

• Stretched - Full Screen
• Centered - Full Image

Backup Camera Guideline Adjust

Language

• English
• Français
• Deutsch

Set Time/Date

Format SD Card

Factory Reset

Firmware Version
